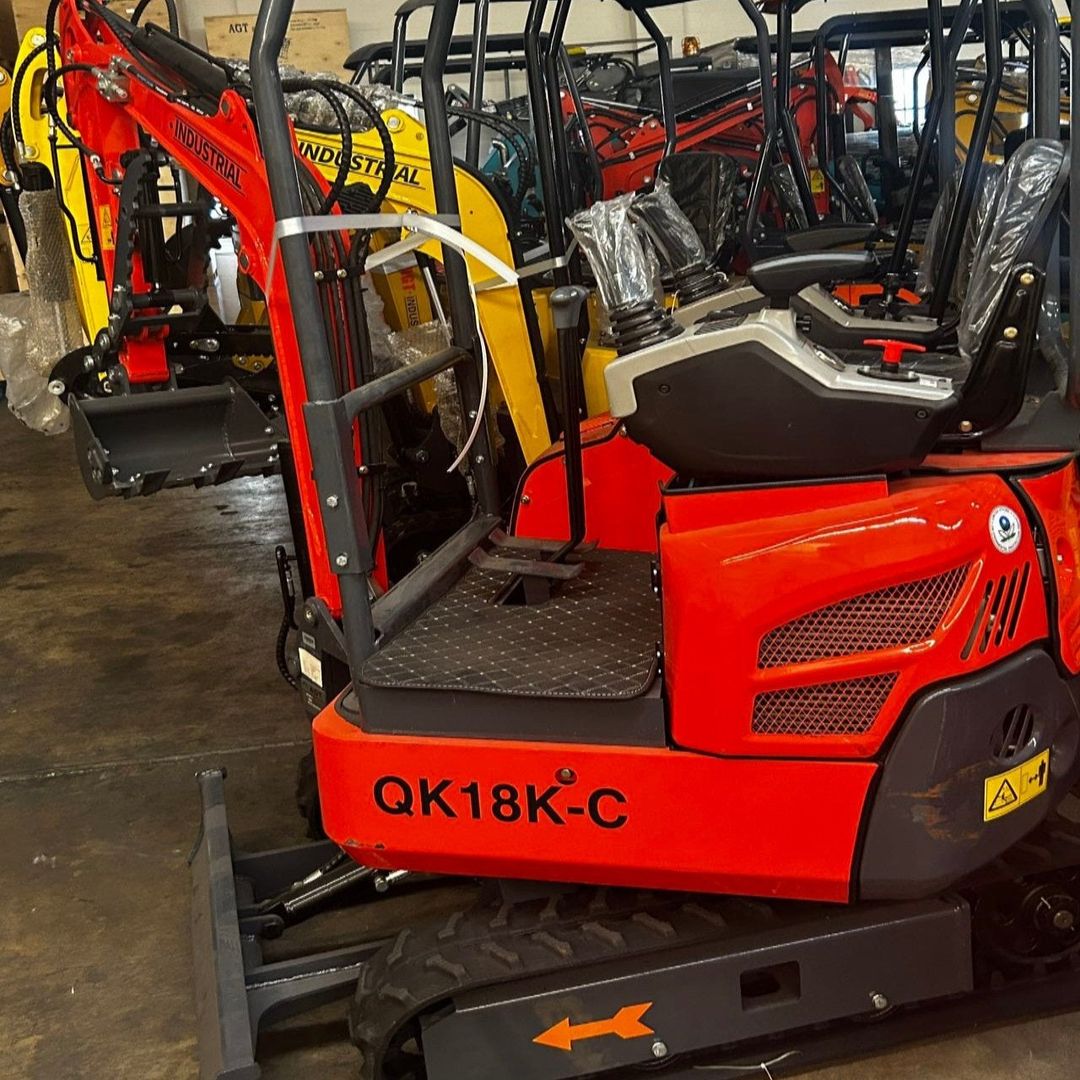

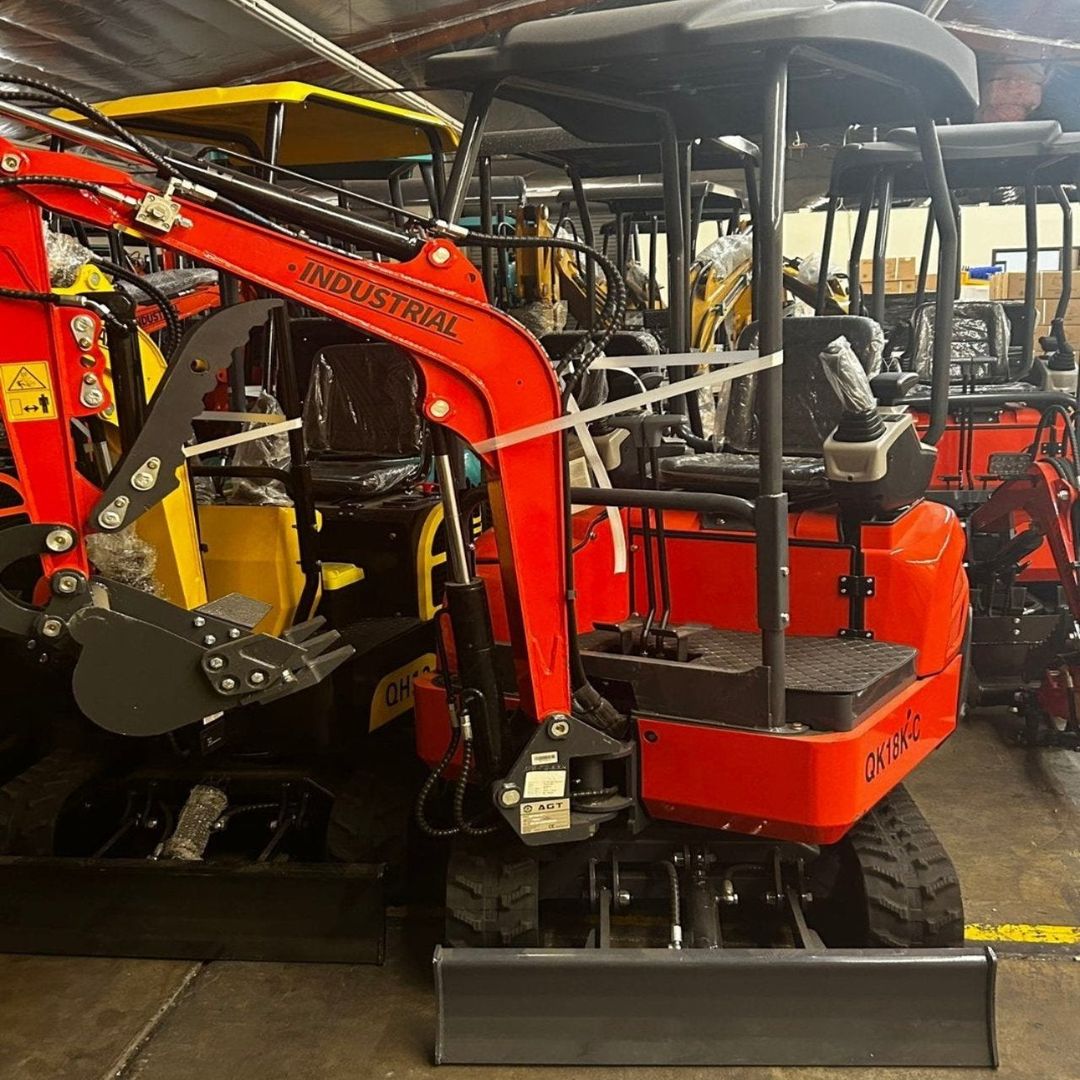

The QK18K-C stands out in the 1.4-ton excavator class with its powerful Kubota engine, integrated swing boom, and hydraulic thumb for enhanced versatility. Unlike other excavators in its class, this model is equipped with a robust 12 series boom and arm, offering compatibility with a wider range of attachments.

Technical Data:

• Operation Weight: 1.4 Ton


• Engine: Kubota Engine


• Horse Power: 13.5


• Max Angle: 30 Degree

Specific Data:

Engine:

• Brand: Kubota


• Model: D722-EF18


• Type: 3-cylinder, water-cooled diesel


• Power Output: 13.5HP


• Maximum Speed: 3,600 RPM

Dimensions:

• Total Length: 2,925 mm


• Overall Width: 958 mm


• Total Height: 2,422 mm


• Operating Specifications:


• Operating Weight: 1.8 tons


• Bucket Capacity: 0.03 m³


• Maximum Digging Depth: 1,693 mm


• Maximum Digging Height: 2,560 mm


• Maximum Digging Radius: 3,060 mm


• Travel Speed: 0–1.8 km/h


• Climbing Ability: 30%

Hydraulic System:

• Rated Set Pressure: 25 MPa


• Main Pump Type: GP510803


• Maximum Flow Rate of Main Pump: 21.6 L/min


• Multi-Circuit Valve: 4 mechanical + 4 hydraulic


• Rotary Hydraulic Motor Type: BM2-315


• Traveling Hydraulic Motor Type: BM6-315

Additional Features:

• Swing Boom: Allows for precise maneuverability in confined spaces.


• Hydraulic Thumb: Enhances material handling capabilities, ideal for gripping and moving objects.

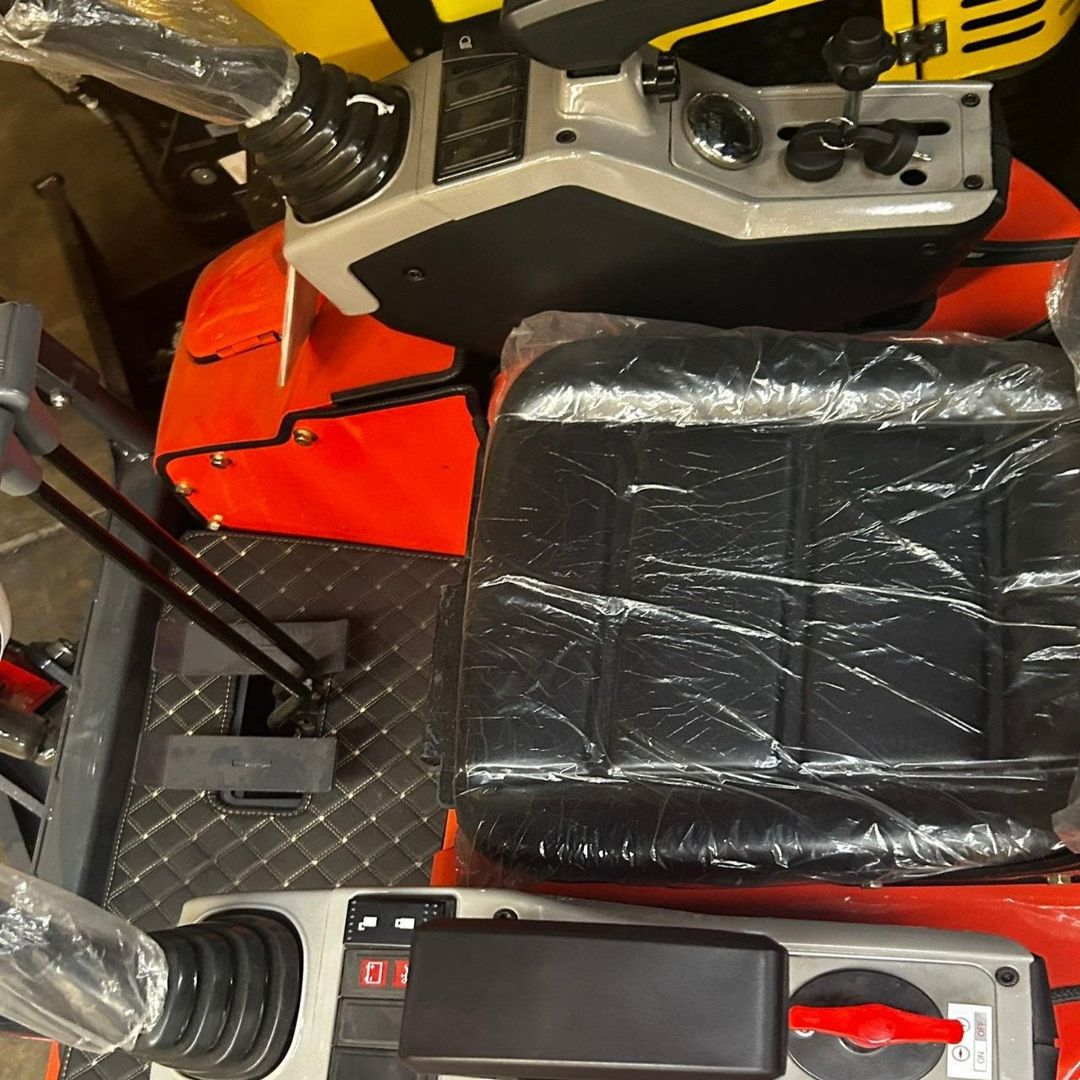

• Pilot Controls with Safety Lockout: Ensures operator safety and precise control.


• Auxiliary Hydraulics: Supports a variety of attachments for increased versatility.

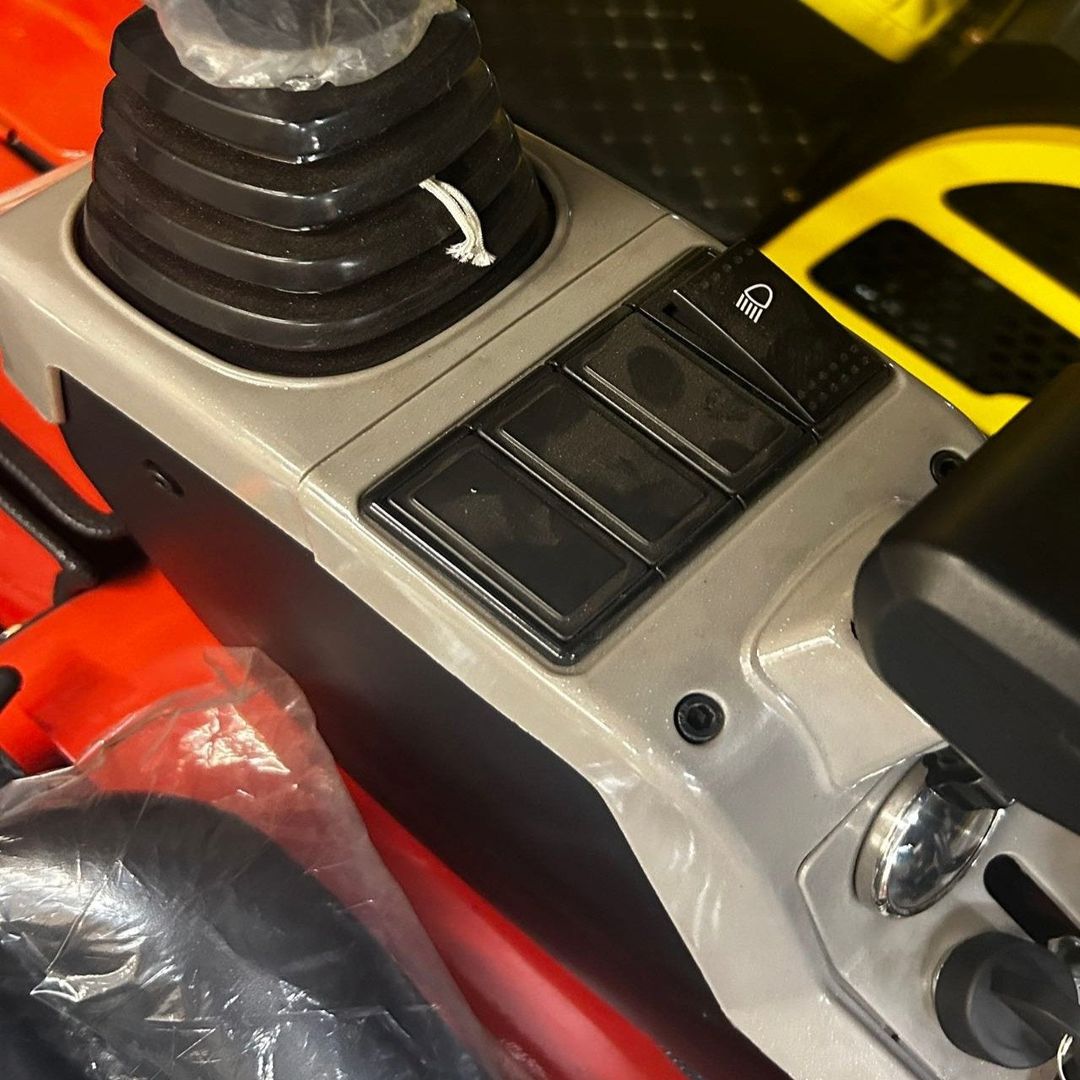

• LED Lights: Provides improved visibility in low-light conditions.


• Backfill Blade: 39 inches wide, useful for grading and backfilling tasks.


• Rubber Tracks: 7 inches wide, designed to minimize ground disturbance and provide traction.


• Bucket: 16-inch digging bucket included.
