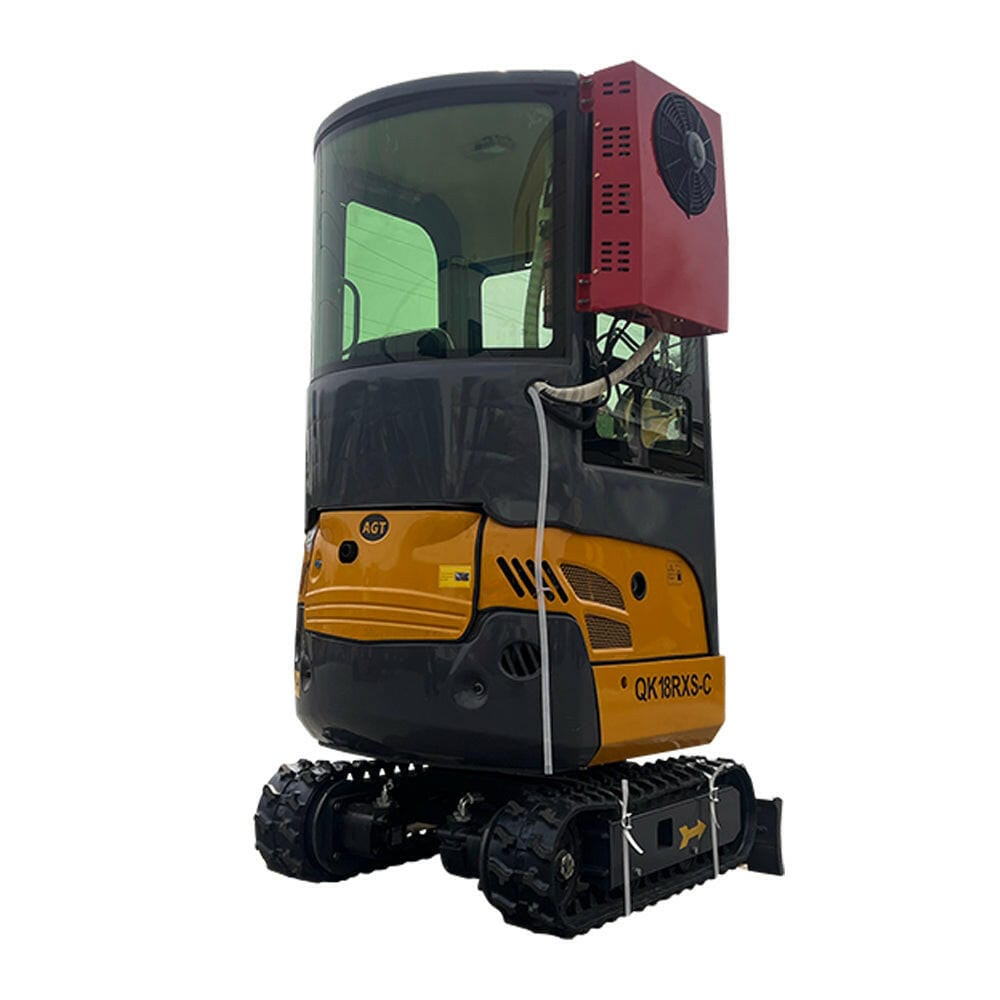

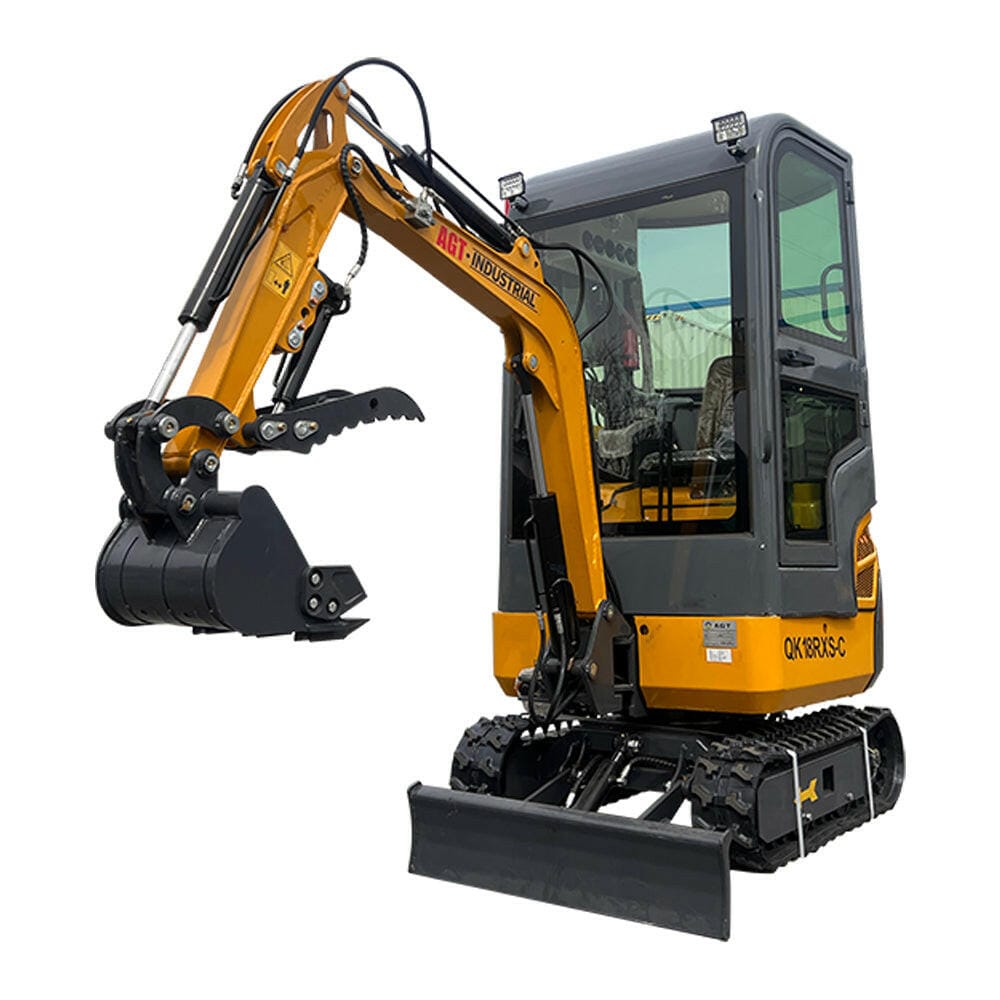

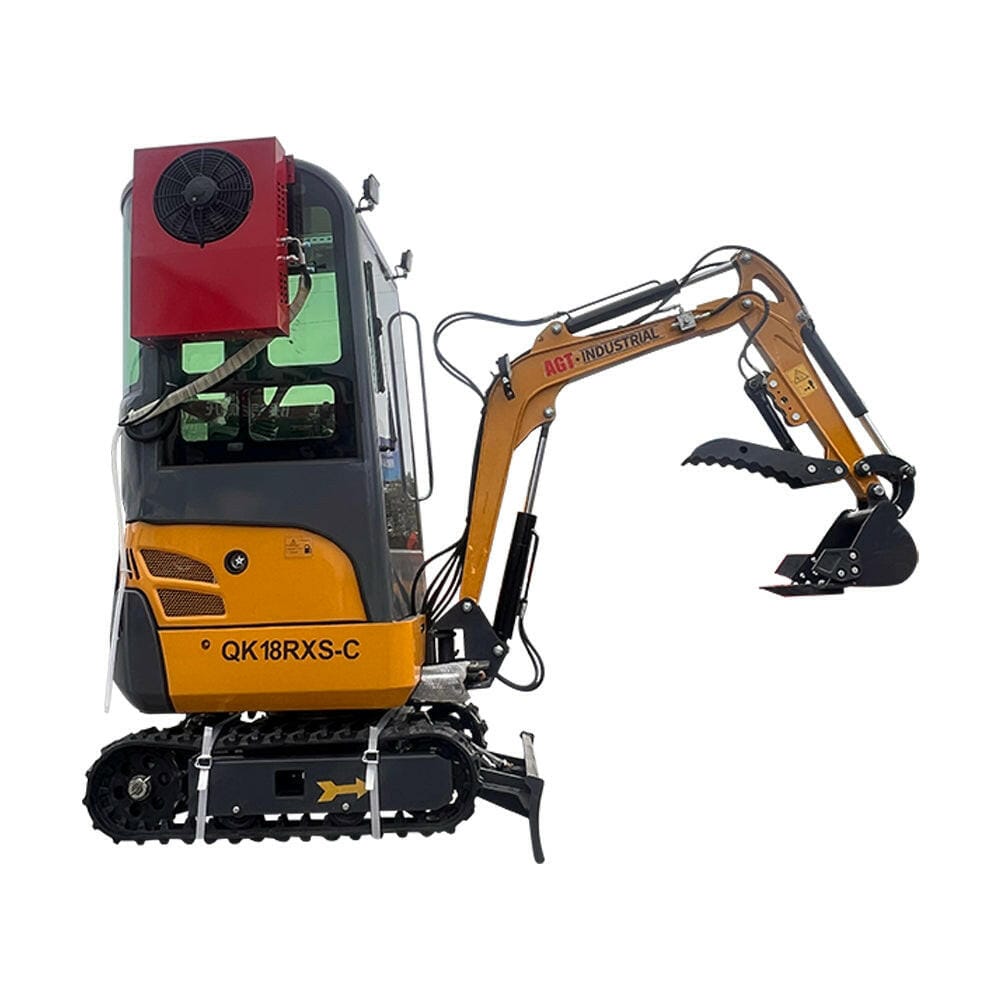

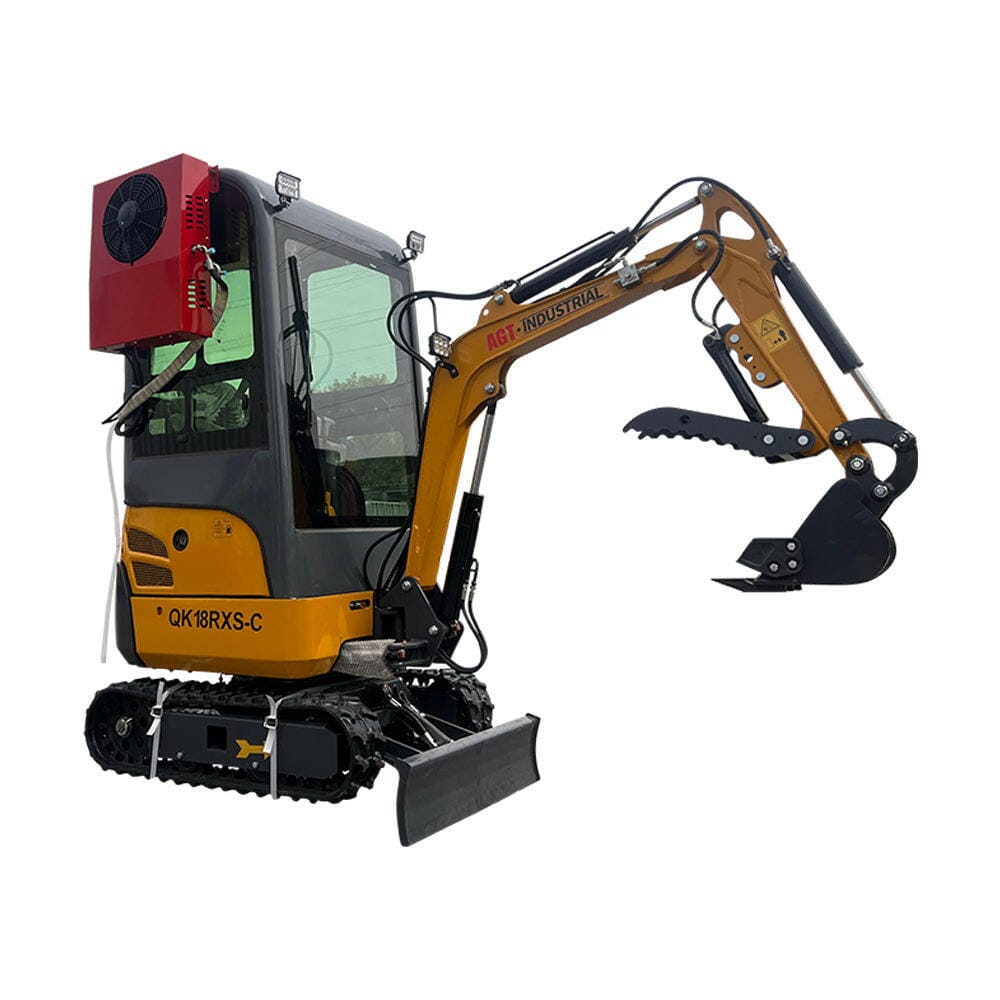

With a compact design, 1-ton operating weight, and a maximum digging depth of 5.79 feet, AGT's lightweight yet powerful mini excavator is ideal for working in narrow driveways, alleys, backyards, gardens, and other tight spaces. With air conditioning, side swing and enclosed cab: Give you a comfortable work experience while you work. The cab keeps out the dust.

Technical Data:

• Operation Weight: 1.08 Ton


• Engine: Rato




• Max Angle: 30 Degree

Engine:

• Brand: Rato


• Model: R420


• Type: Single-cylinder gasoline engine


• Power Output: 8.5 kW (approximately 11.4 HP)


• Maximum Speed: 3,600 RPM


• Fuel Type: Gasoline (#92)

Performance:

• Operating Weight: 1.08 tons (980 kg)


• Maximum Digging Depth: 1,693 mm (5.56 feet)


• Maximum Digging Height: 2,560 mm (8.4 feet)


• Maximum Loading Height: 1,800 mm (5.91 feet)


• Minimum Rotation Radius: 3,060 mm (10.04 feet)


• Travel Speed: 0-1.8 km/h


• Climbing Ability: 15°

Dimensions:

• Overall Length: 2,925 mm


• Overall Width: 958 mm


• Overall Height: 2,422 mm

Hydraulic System:

• Main Pump Type: GP510803


• Rated Set Pressure: 25 MPa


• Maximum Flow Rate: 21.6 L/min


• Multi-Circuit Valve: 4 mechanical + 4 hydraulic


• Rotary Hydraulic Motor Type: BM2-315


• Traveling Hydraulic Motor Type: BM6-315

Additional Features:

•



  • Cabin: Enclosed with air conditioning


  • Side Swing: 30° angle


  • Bucket Capacity: 0.03 m³


  • Track Width: 180 mm (7 inches)


  • Attachments: Hydraulic thumb, push blade


  • Lighting: LED work lights


  • Operator Controls: Real pilot controls


  • Additional Features: Auxiliary hydraulics, windshield wiper





Specific Data：

Hydraulic System:
